Weighing station

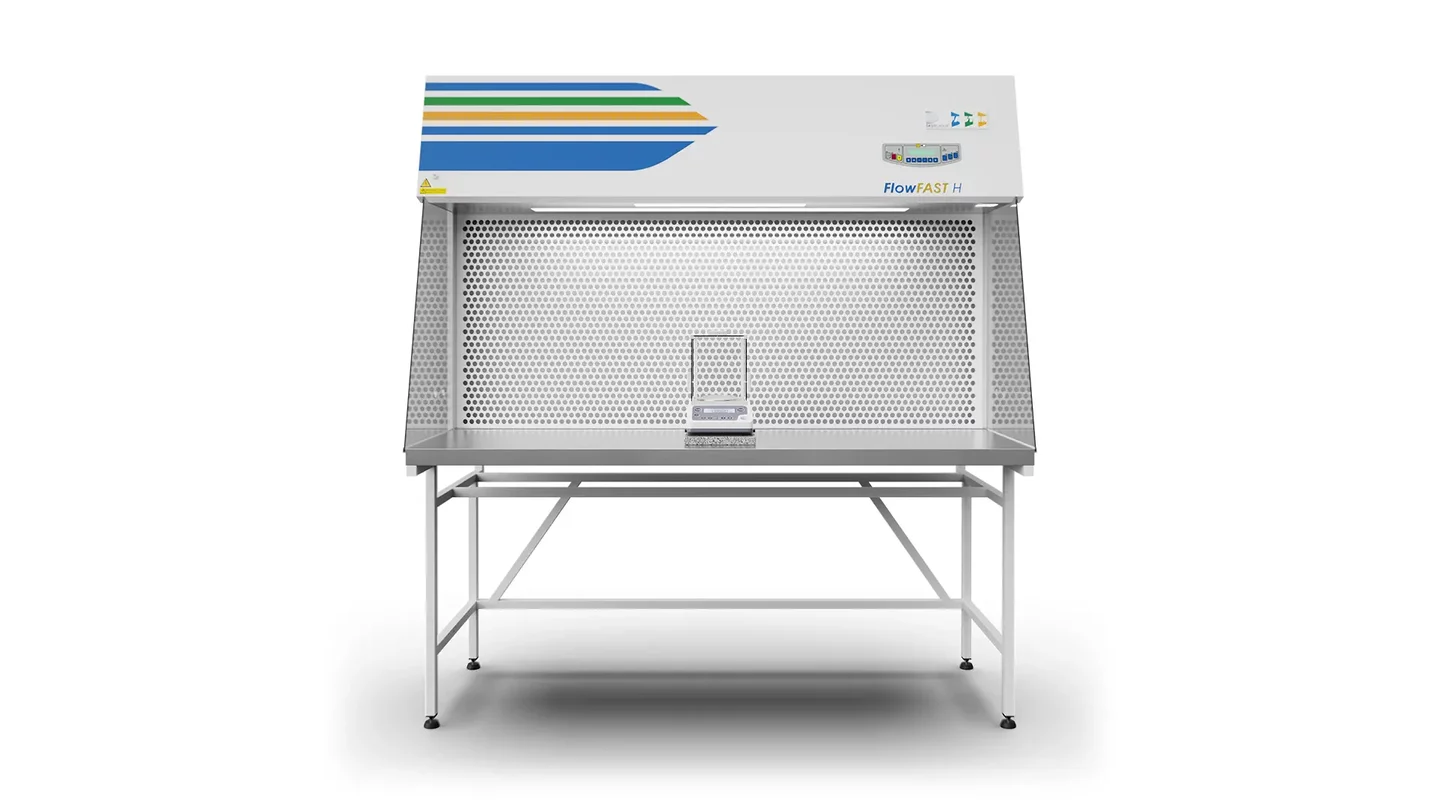

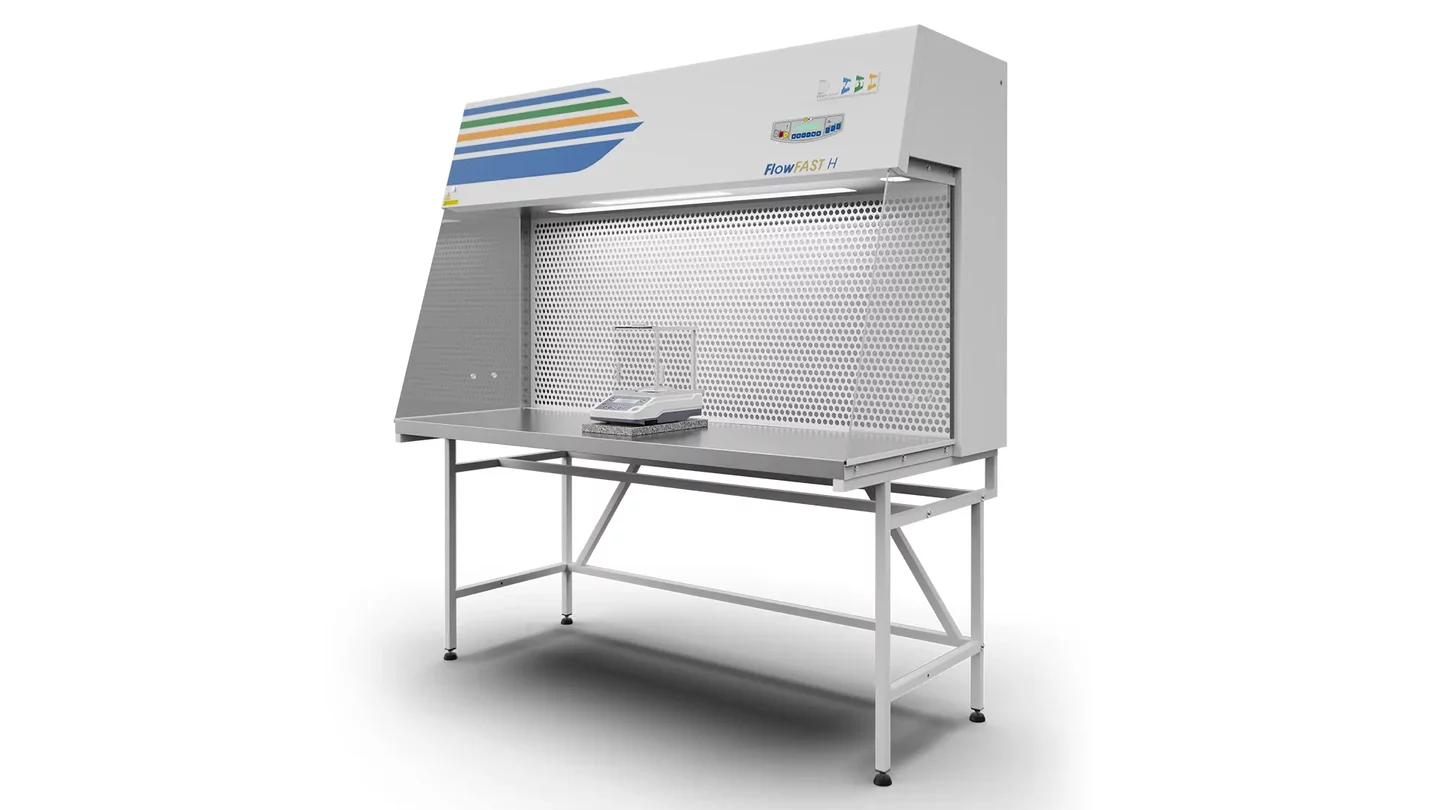

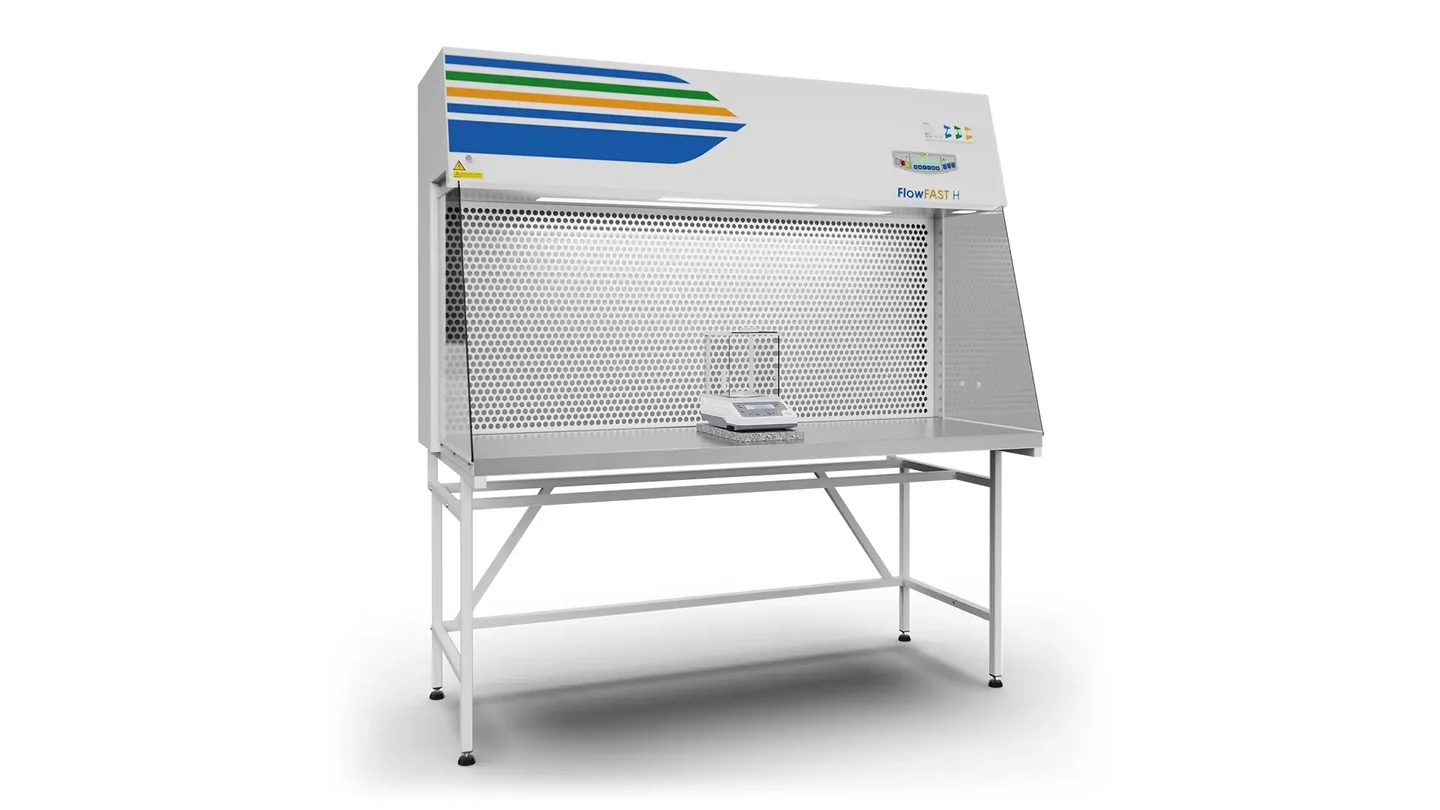

FlowFAST H Reverse Flow
With the FlowFAST H Reverse Flow, the air is drawn in completely from the ambient air and released into the ambient air after being filtered by an H14 HEPA filter. It therefore offers operators protection from hazardous powders or strong pharmaceutical compounds. The carefully aerodynamically designed unit reduces airflow turbulence for maximum containment while minimising the impact that draughts can have on sensitive scales. The design of the system exceeds the containment requirements of ANSI/ASHRAE 110, as confirmed by independent type testing.
Your product benefits at a glance
- Chemically resistant and abrasion-resistant, removable phenolic work surface
- External surfaces are powder-coated with antimicrobial coating
→ Elimination of 99.9% of surface bacteria within 24 hours - Fully configurable microprocessor control with audible and visual alarm
- 2 devices for electrical wiring
→ Possibility to connect additional devices inside the fume cupboard to the electrical network - Built-in, warm white 5000k fluorescent tube
Main areas of application
Specially developed as a weighing cabinet, the workbench is primarily used for weighing hazardous powdery substances, sampling and overfilling work as well as for working with sieving machines.
| Model | FlowFAST H Reverse 0.9 m | FlowFAST H Reverse 1.2 m | FlowFAST H Reverse 1.5 m | FlowFAST H Reverse 1.8 m |
|---|---|---|---|---|
| Standards | EN ISO 14644-1 | EN ISO 14644-1 | EN ISO 14644-1 | EN ISO 14644-1 |
| General dimensions (WxHxD in mm) | 945 × 1195 × 925 | 1250 × 1195 × 925 | 1555 × 1195 × 925 | 1860 × 1195 × 925 |
| Usable dimensions (WxHxD in mm) | 885 × 734 × 600 | 1190 × 734 × 600 | 1495 × 734 × 600 | 1800 × 734 × 600 |
| Inflow (m/s) | 0.40 | 0.40 | 0.40 | 0.40 |
| Electr. Connection | 1Ph+E - 230V 50Hz | 1Ph+E - 230V 50Hz | 1Ph+E - 230V 50Hz | 1Ph+E - 230V 50Hz |
