Laminar flow cabinets

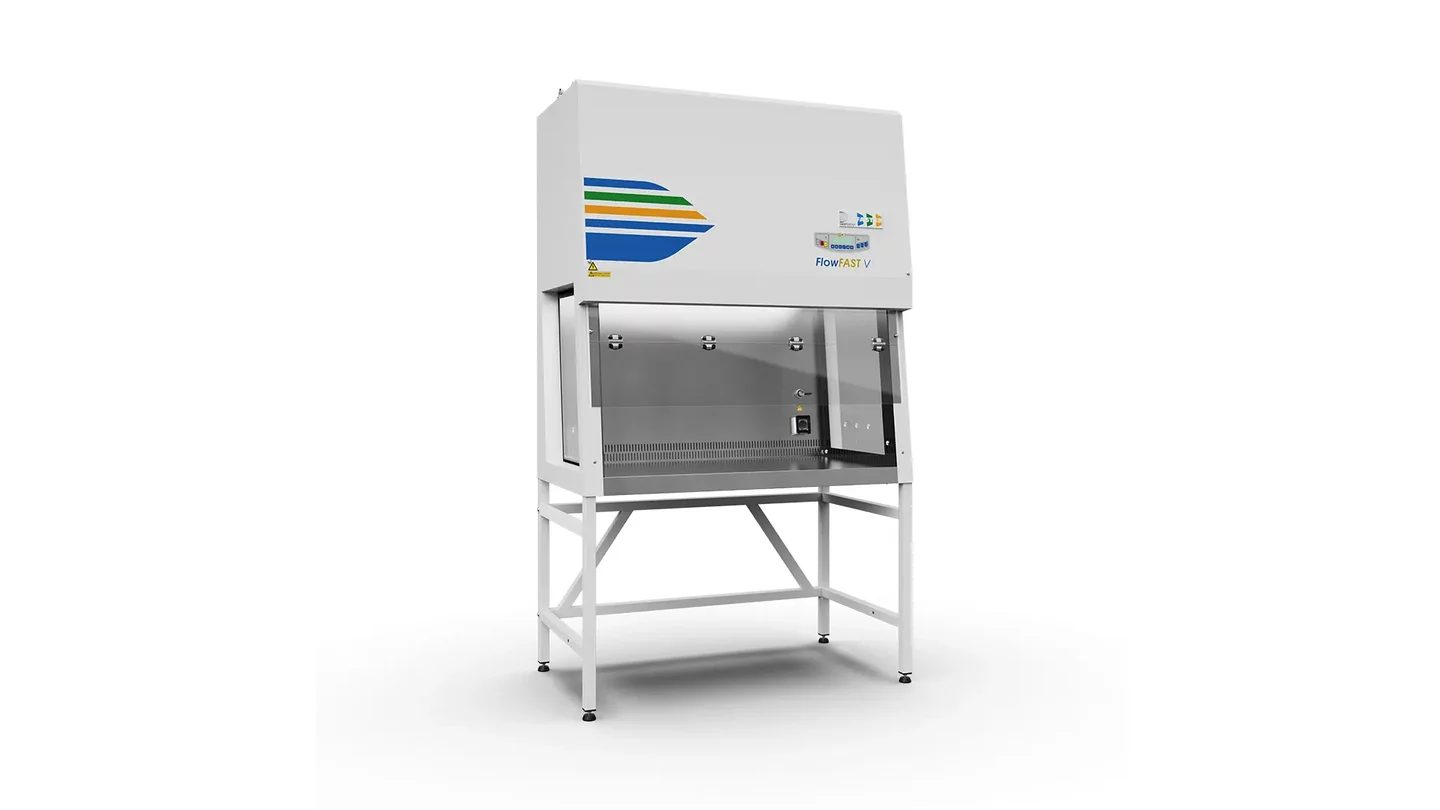

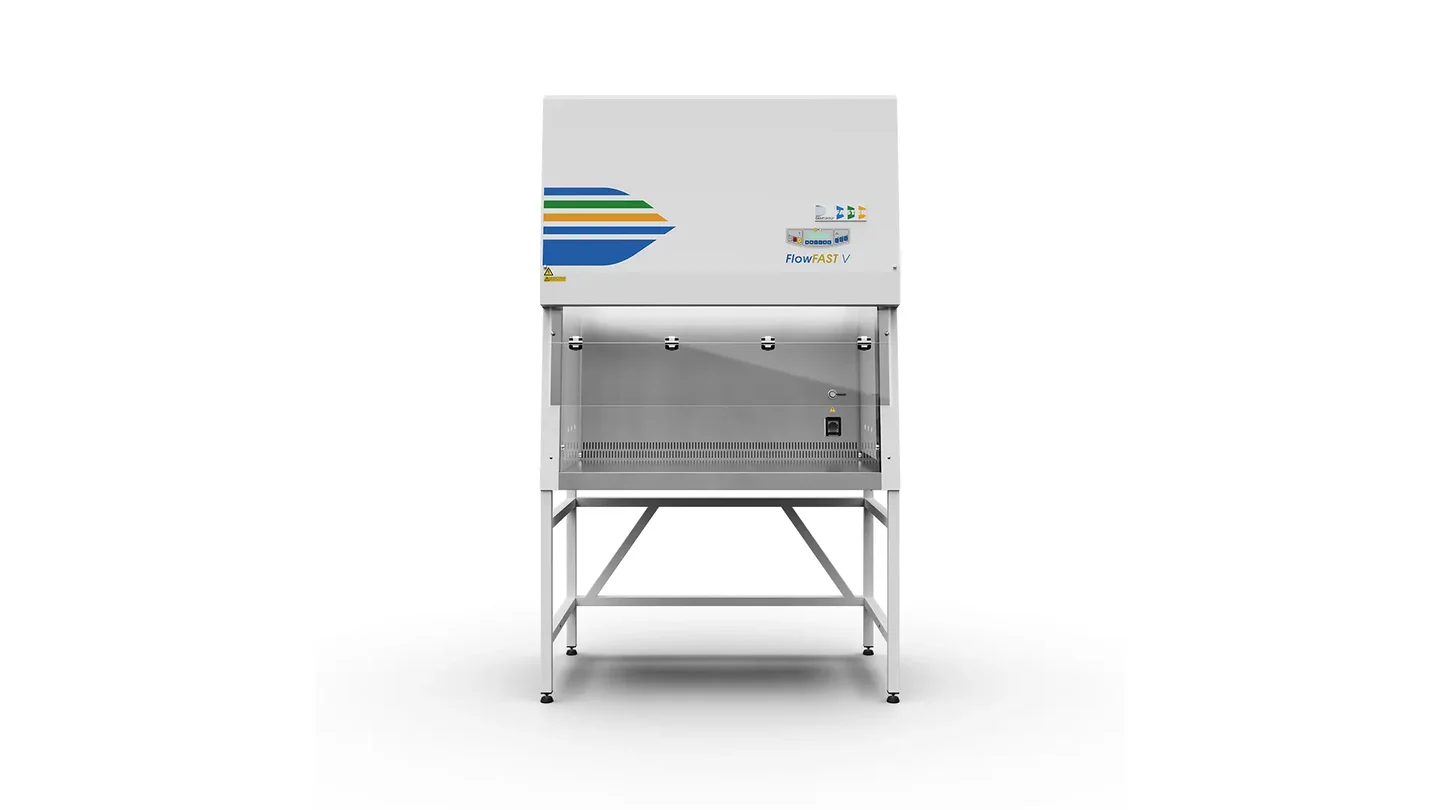

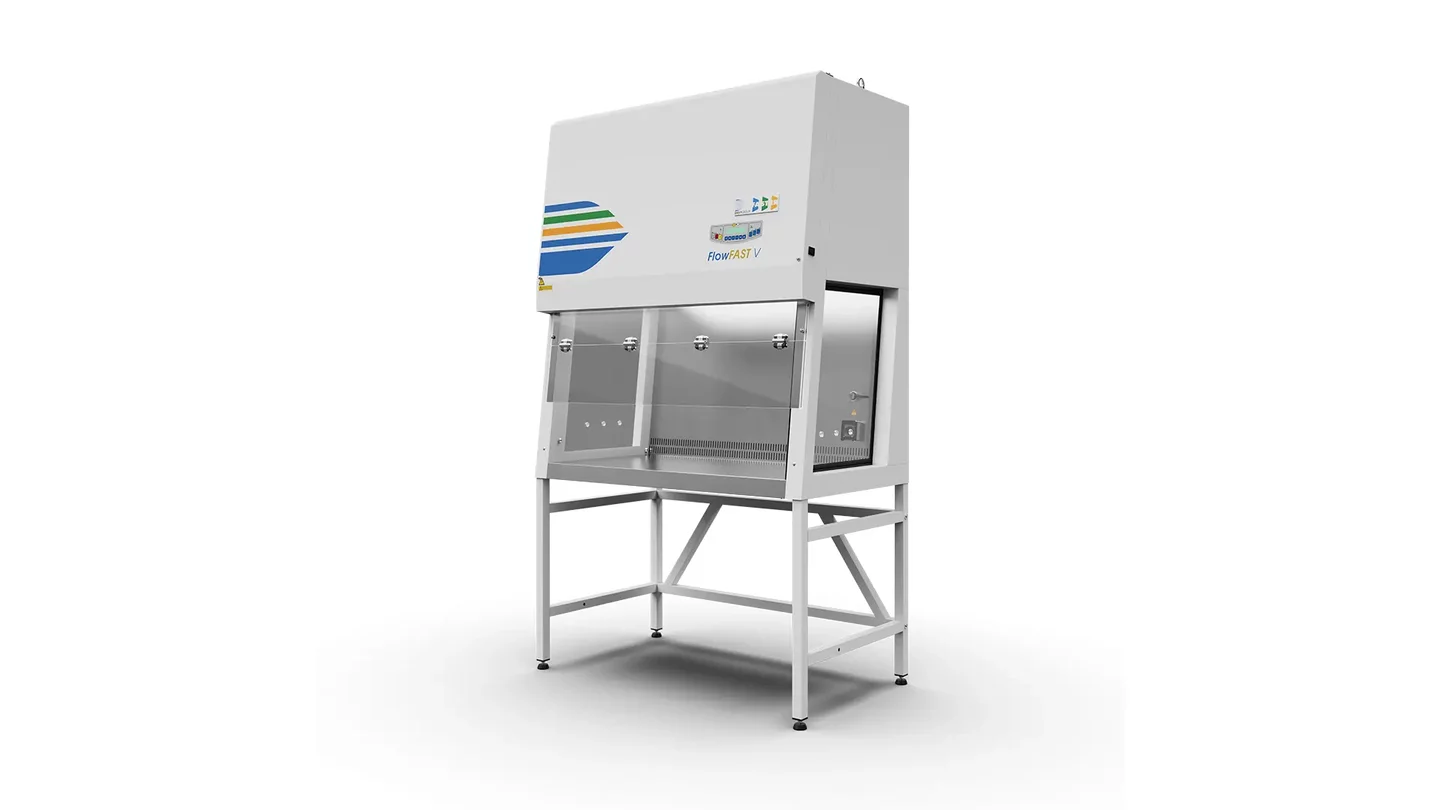

FlowFAST V

Illustrations may contain additional options subject to a charge
Illustrations may contain additional options subject to a charge
Illustrations may contain additional options subject to a charge

The FlowFAST V is a state-of-the-art product safety cabinet with vertical laminar airflow that has been specially developed for applications where a contamination-free working area is required. Thanks to its technical features, it complies with cleanliness class ISO 3 in accordance with ISO 14644-1 and therefore offers a high-performance, economical alternative to the classic cleanroom.

The uniform vertical air flow across the entire work surface creates a sterile overpressure area that reliably prevents particles or microorganisms from the environment from entering the work area. The FlowFAST V is therefore ideal for use in the pharmaceutical industry, biotechnology, research laboratories, medical diagnostics and the food and cosmetics industries.



Maximum air purity - reliable and efficient

The air is first pre-cleaned by a G3 pre-filter with a retention capacity of 80-90 % (in accordance with ASHRAE) and then passed through a high-performance H14 class HEPA filter (in accordance with EN 1822). This has a separation efficiency of99.995 % at MPPS (Most Penetrating Particle Size) and thus guarantees an ISO 3-compliant, particle-free working atmosphere.

  • Technical specifications at a glance
    • Vertical laminar airflow, ISO Class 3 cleanroom
    • HEPA H14 filter for maximum filtration efficiency (99.995 % MPPS)
    • Low power consumption < 300 W – ideal for continuous operation
    • Low noise level < 60 dB(A) – for a pleasant working environment
    • Hinged front panel – for easy access and hygienic cleaning
    • Side panels made of safety glass – transparent protection with high impact resistance
    • Stainless steel worktop – chemical-resistant, smooth and easy to clean
    • Automatic airflow regulator – for consistently optimal airflow
    • Multifunction display with PLC control – intuitive operation and status display
    • UV disinfection lamp (optional) – for additional microbial decontamination
    • 2 integrated sockets (standard) – for operating equipment within the work area
  • A range of flexible bases to choose from

    Base frame with swivel castors

    • Base frame for seated workstation height 880 mm – The base frame can also be individually adjusted to your desired working height on request. Bespoke manufacture is available at an additional cost.
    • 360° swivelling polyurethane castors – quiet, suitable for cleanrooms
    • Braking mechanism on the front castors – ensures stability during mobile use


    Base frame with adjustable feet

    For fixed installation locations with precise levelling

  • Connections & Compatibility
    • Electrical sockets for Europe and international standards
    • Media connections for compressed air, vacuum, gas, etc.
    • Compatible with common standards: DIN 12898, DIN 12919, DIN 3537
  • Optional add-ons for enhanced functionality and ergonomics

    UV disinfection system

    • UV-C lamp (253.7 nm) for germicidal radiation
    • Automatic shut-off when the front is opened
    • Timer control via PLC control panel
    • Note: UV lamps are not a substitute for manual cleaning and should be replaced every 12 months.


    IV hanging rail with hooks

    • Stainless steel design with 6 hooks
    • Ideal for storing and handling IV bags
    • Particularly suitable for pharmaceutical applications


    Ergonomic footrest

    • Angled design to relieve strain on the leg muscles
    • Height-adjustable, with non-slip coating
    • Chemical-resistant


    Ergonomic laboratory chair

    • Designed for Class 100 cleanrooms
    • Alcohol-resistant PVC material
    • Seat height adjustment 395–490 mm
    • Robust and hygienic design for everyday laboratory use
  • Applications of the FlowFAST V
    • Pharmaceutical development and manufacturing
    • Sterile filling and sample preparation
    • Cell culture and microbiology laboratories
    • Quality control and testing laboratories
    • Research institutions and university laboratories
    • Cosmetics and food industries
    • Cleanroom technology and medical diagnostics
Model Type FlowFAST V 0.9 m FlowFAST V 1.2 m FlowFAST V 1.5 m FlowFAST V 1.8 m
Standards EN61010-1, EN ISO 14644-1 EN61010-1, EN ISO 14644-1 EN61010-1, EN ISO 14644-1 EN61010-1, EN ISO 14644-1
General dimensions (W×H×D, mm) 1045 x 1545 x 760 1350 × 1545 × 760 1655 × 1545 x 760 1960 × 1545 × 760
Usable dimensions (W×H×D, mm) 893 x 755 x 609 1198 × 755 × 609 1503 × 755 × 609 1808 × 755 × 609
Downflow (m/s) 0.45 0.45 0.45 0.45
Electrical connection 1Ph+E - 230 V 50 hz 1Ph+E - 230 V 50 hz 1Ph+E - 230 V 50 hz 1Ph+E - 230 V 50 hz
