Biological safety cabinets
SafeFAST Classic

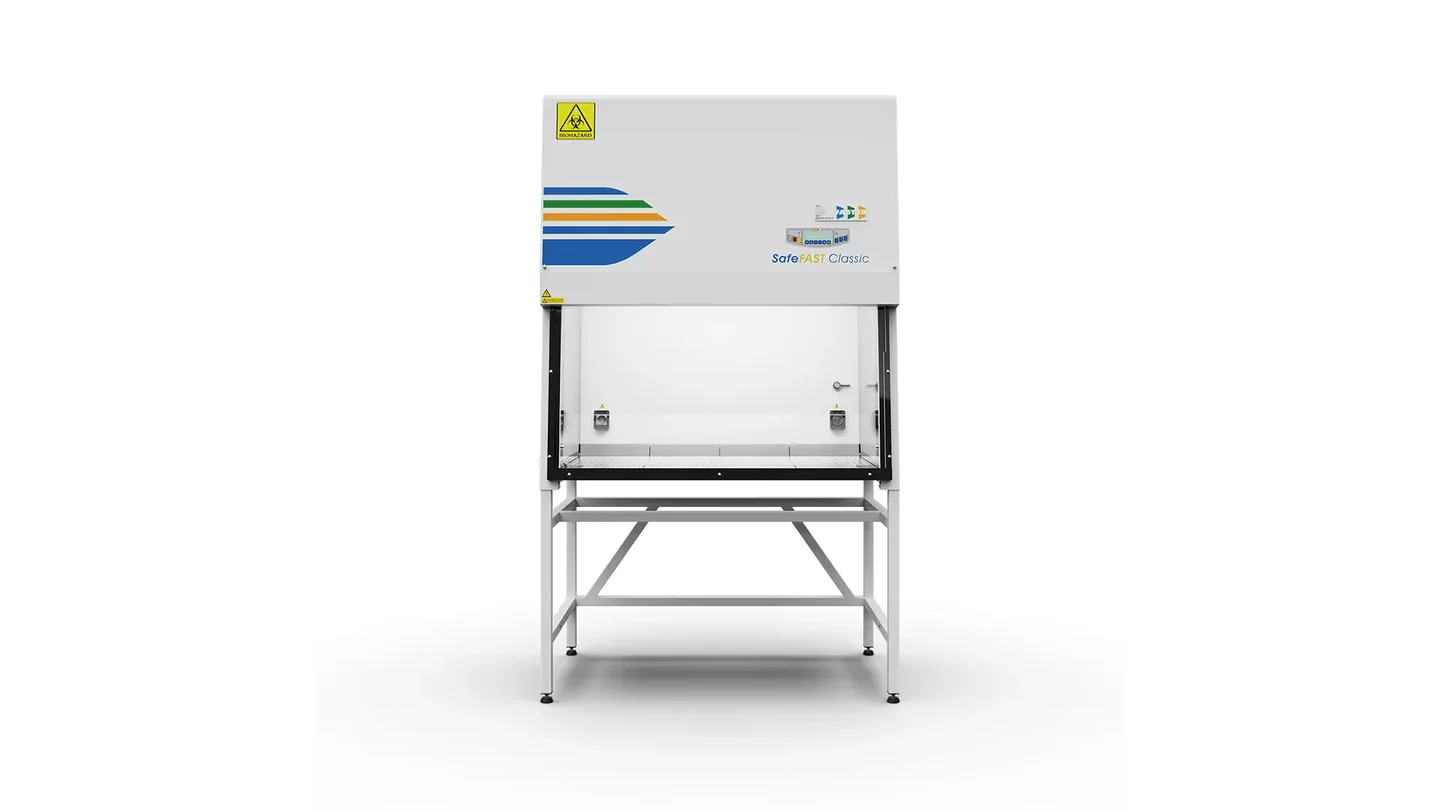

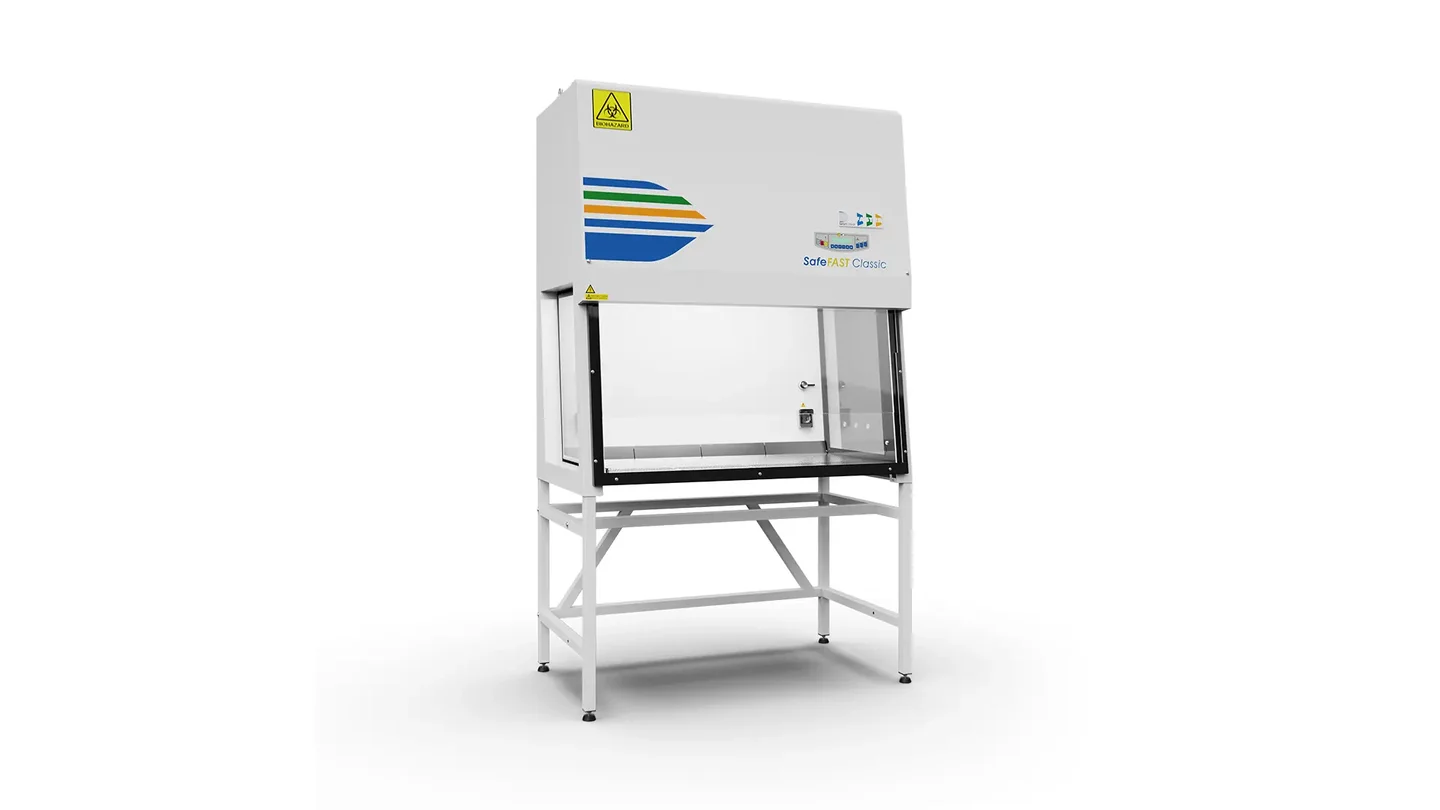

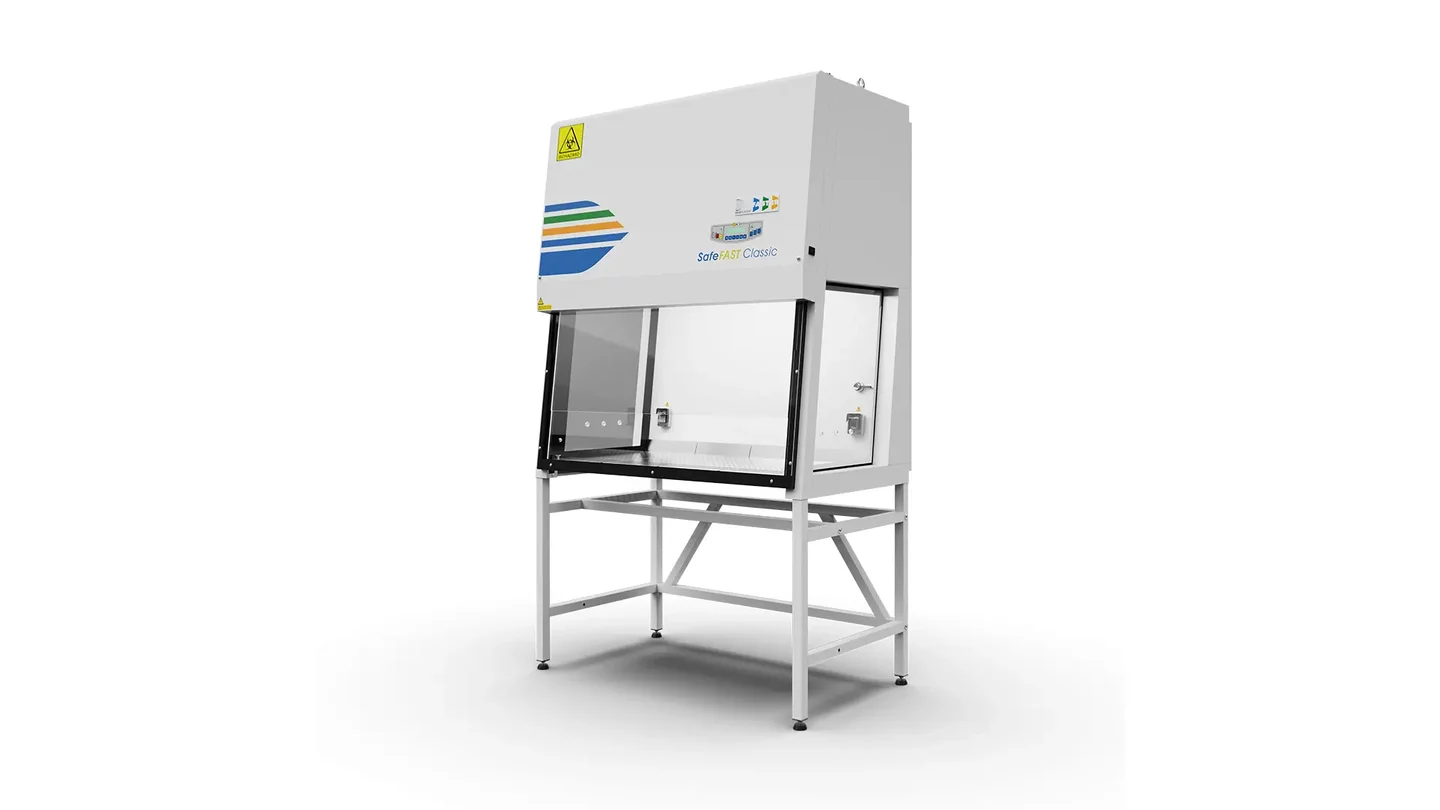

SafeFAST Classic - Proven safety cabinet for reliable everyday laboratory work
Certified protection for personnel, product and environment - robust, economical and powerful
The SafeFAST Classic is a class II biological safety cabinet designed for laboratories, research facilities and GMP-compliant production environments where maximum safety and reliability are required in daily operation. It fulfils the requirements of the European standard EN 12469:2000 and offers triple protection thanks to its sophisticated airflow: for the operator, the product and the ambient air.
With the SafeFAST Classic, particular attention was paid to durability, ease of cleaning and an attractive price-performance ratio - ideal for long-term use with high efficiency.
Your product benefits at a glance
- Certified protection in accordance with EN 12469:2000
- Robust stainless steel construction - also suitable for aggressive substances
- Cost-efficient in purchase and operation
- Modularly expandable - for your individual laboratory processes
- Easy to maintain thanks to segmented components
- Ideal for research, diagnostics and pharmaceutical applications
Safe airflow concept - Class II protection principle
The SafeFAST Classic is based on the proven safety principle of class II biological workbenches:
- 70 % of the air is recirculated via an H14 HEPA main filter in accordance with EN 1822
- 30 % of the air is discharged from the appliance in a controlled manner via a separate H14 HEPA exhaust air filter
This guarantees a stable, laminar air flow in the work area and reliable protection against potentially infectious aerosols or particles - while minimising air turbulence for a high level of product protection.
Typical areas of application
The SafeFAST Classic is ideal for all microbiological work within the scope of:
- Microbiology and virology
- Cell culture techniques and molecular biology procedures
- Haematology and blood analysis
- Genetics, PCR workstations, DNA/RNA handling
- GMP-compliant drug production and quality control
Thanks to the chemical-resistant materials, it is also ideal for applications with acids or slightly aggressive media.
Technical features & standard equipment
- Energy-efficient: power consumption <257 W
- Quiet in operation: <53 dB(A) - pleasant in work areas with several devices
- Motorised front screen and manual opening of the front panel using brackets
- Side windows: Made from robust safety glass
- Rear panel: Expoxy-coated stainless steel, chemical-resistant - particularly suitable for applications with acids
- Interior: Made of stainless steel 1.4404 (AISI 304), hygienic, joint-free, corrosion-resistant
- Segmented work surface: Made of stainless steel, easy to remove and clean
- Multifunctional display with PLC control: Visualisation of air flow, filter status, operating time, maintenance
Optional equipment for individual requirements
- Manually hinged windscreen (as a cost-effective alternative)
- Double blower for particularly high air volumes or redundancy
- Connections for compressed air, gas, nitrogen or vacuum
- UV-C sterilisation lamp with timer function (253.7 nm wavelength)
- Electrically height-adjustable base frame - for ergonomically optimised work
- Weighing worktop - low-vibration, ideal for precision scales
- Particle monitoring (ISO class A) - for GMP-compliant monitoring
- Touchscreen monitor - flush-mounted, suitable for cleanrooms
- Alternative work surfaces: perforated or as a stainless steel work tray
- Draught-free exhaust air connection - ideal for centralised exhaust air routing
- Special coatings on request
Workbench accessories & ergonomics
Media & electrical connections
- Electrical sockets for Europe / worldwide
- Media connections according to DIN 12898, 12919, 3537
- For air, vacuum, gases etc.
IV hanging rod made of stainless steel
- With 6 hooks for space-saving storage of infusion bags - ideal for pharmaceutical applications
Ergonomic footrest
- Inclined for a healthy posture
- Height-adjustable, chemical-resistant, non-slip
Cleanroom laboratory chair (class 100)
- Alcohol-resistant PVC material
- Adjustable seat height: 395-490 mm
- For comfortable, long periods of work in the safety area
Base frames
- With swivel castors: mobile, with locking system (800 or 950 mm height)
- With adjustable feet: stationary, low-vibration
Magnetic UV light (optional) UV-C disinfection system (optional)
- Automatic control via timer on the PLC control panel
- 253.7 nm UV radiation for effective decontamination
- Installation out of the operator's line of sight
⚠ Note: UV lamps do not replace cleaning. Service life approx. 12 months - regular replacement recommended.
| Model Type | SafeFAST Classic 0.9 m | SafeFAST Classic 1.2 m | SafeFAST Classic 1.5 m | SafeFAST Classic 1.8 m |
|---|---|---|---|---|
| Standards | EN12469, EN61010-1 | EN12469, EN61010-1 | EN12469, EN61010-1 | EN12469, EN61010-1 |
| General dimensions (W×H×D, mm) | 1045 × 1500 × 810 | 1350 × 1500 × 810 | 1655 × 1500 × 810 | 1960 × 1500 × 810 |
| Usable dimensions (W×H×D, mm) | 887 × 740 × 580 | 1192 × 740 × 580 | 1497 × 740 × 580 | 1802 × 740 × 580 |
| Inflow (m/s) | 0.45 | 0.45 | 0.45 | 0.45 |
| Downflow (m/s) | 0.40 | 0.40 | 0.40 | 0.40 |
| Electr. Connection | 1Ph+E - 230 V 50 Hz | 1Ph+E - 230 V 50 Hz | 1Ph+E - 230 V 50 Hz | 1Ph+E - 230 V 50 Hz |
