Circulating air fume cupboards

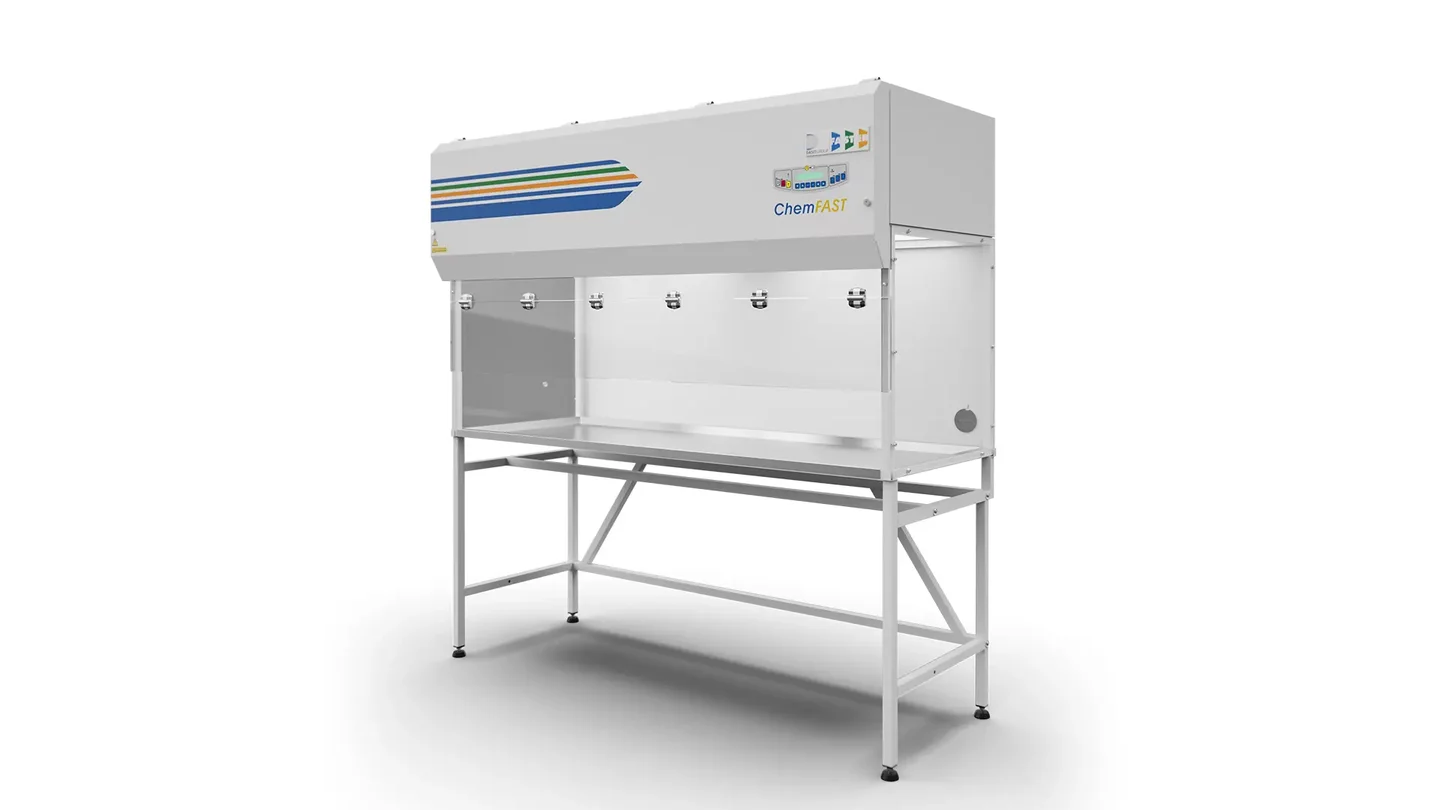

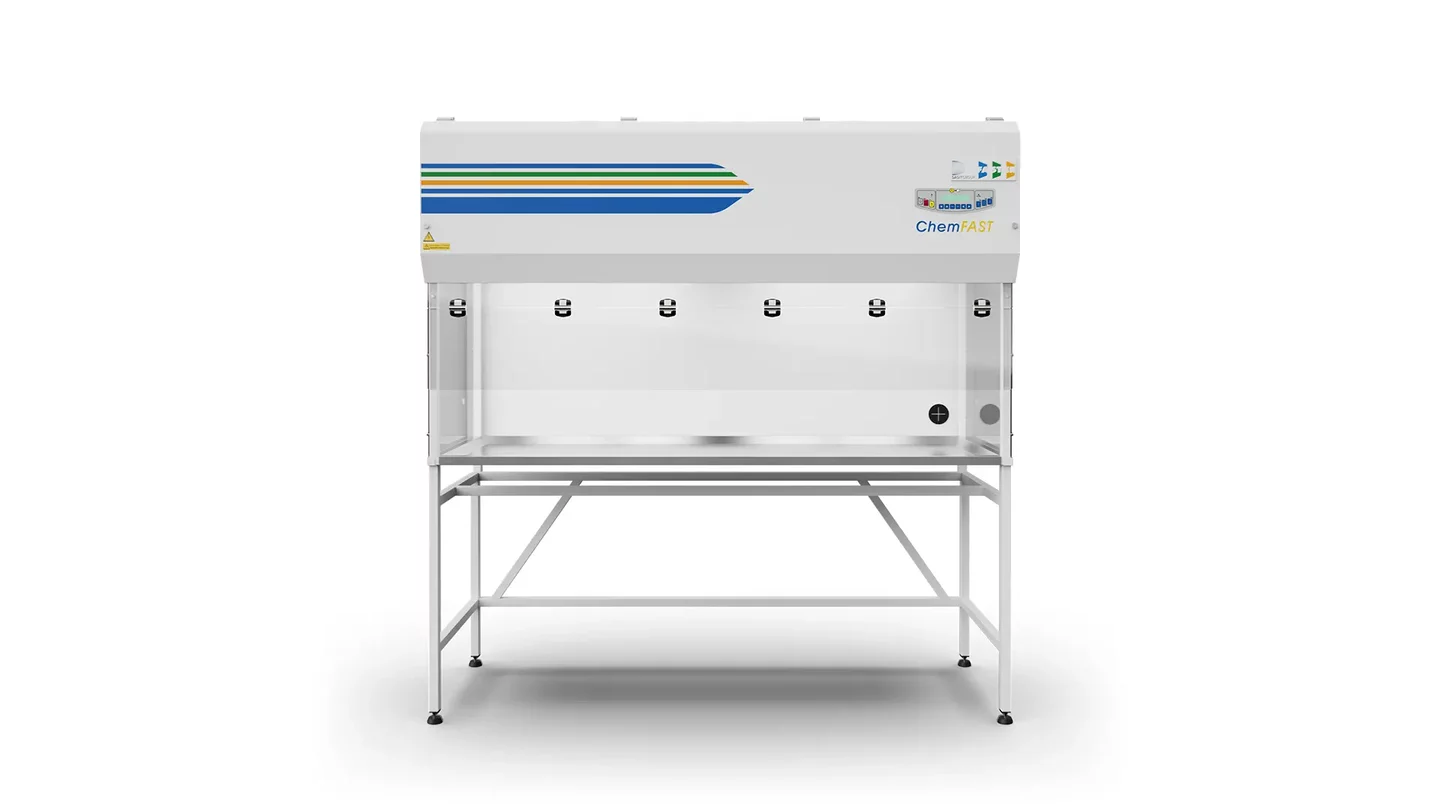

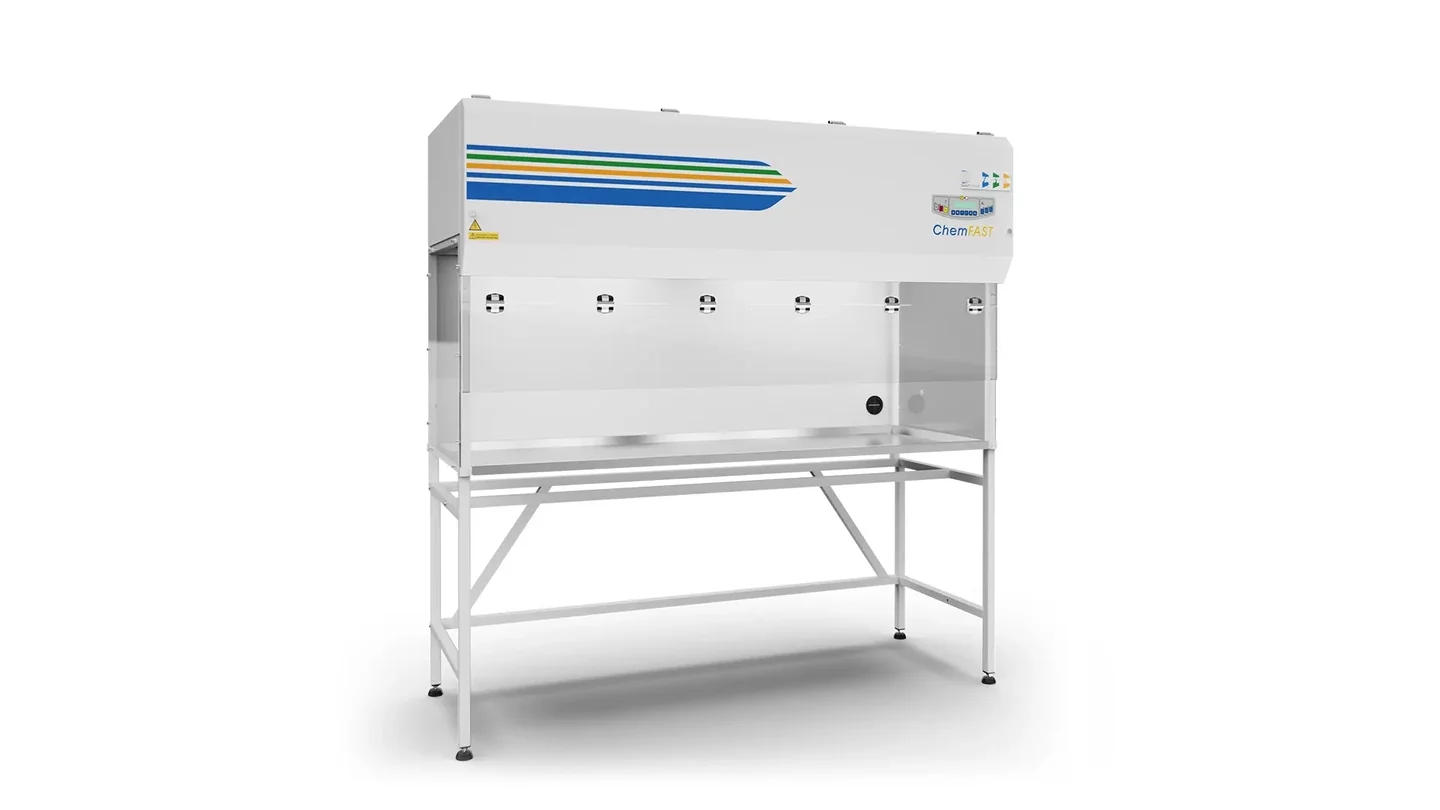

ChemFAST Elite / Top

The ChemFAST Elite / Top series from FASTER stands for state-of-the-art safety technology in the field of recirculating air laboratory fume cupboards. Designed in accordance with EN ISO 14175-3, these fume cupboards offer maximum protection for operating personnel when handling potentially hazardous gases, vapours, dusts or aerosols - regardless of whether they come from organic solvents, aggressive chemicals or toxic solids.

These fume cupboards operate in recirculation mode with highly efficient filter technology or can optionally be connected to an external exhaust air system - depending on the structural conditions or application requirements.



Safe, energy-saving and user-friendly

The ChemFAST Elite / Top was developed in such a way that safe working and simple operation are ideally combined. Equipped with a microprocessor-controlled control unit, a multifunctional display and functions such as a filter saturation indicator and operating hours counter, you always have full control over all safety-relevant parameters.

An integrated airflow and filtration system ensures that hazardous substances are immediately drawn in, filtered and reliably retained - without the need to discharge contaminated air to the outside.

The fume cupboard can either be connected to the exhaust air system or operated in recirculation mode.

Your product benefits at a glance

  • Maximum personal protection with minimum energy consumption
  • Flexible use in recirculation or exhaust air mode
  • Intelligent control and convenient user guidance
  • Durable, low-maintenance components

The ChemFAST Elite is also equipped with a gas detector to monitor the filter saturation.

  • Technical features at a glance
    • Recirculation mode with optional exhaust air connection
    • HEPA main filter with upstream pre-filter - for effective retention of the finest particles and aerosols
    • Individually combinable filters depending on hazardous substance class (see filter options)
    • PLC-controlled multifunctional display with indication of all operating statuses
    • Filter saturation indicator for timely maintenance and safety
    • Operating hours display for maintenance planning and service life monitoring
    • Hinged front screen - for easy cleaning and maintenance
    • Side panes made of safety glass - break-proof and cleanroom-compatible
    • Chemical-resistant worktop - resistant to aggressive media
    • Low energy consumption < 88 watts - for sustainable and cost-efficient operation
  • Filter options - customised to your processes

    Depending on the area of application and the type of substances used, the ChemFAST Elite / Top can be combined with up to two filter types:

    HEPA
    Particles, dusts, powders

    A/C
    Organic solvents

    ACR
    Radioactive particles

    FORM
    Formaldehyde

    SULF
    Acids/sulphides (RH85 %)

    UR
    Acids/sulphides (RH < 85 %)

    CYAN
    Hydrogen cyanide (HCN)

    MER
    Mercury vapours

    AM
    Ammonia

    Our experts will be happy to help you select the right filter combination to optimally fulfil your requirements in terms of occupational safety and process quality.

  • Areas of application

    The ChemFAST Elite / Top is suitable for a wide range of applications in which hazardous substances are handled:

    • General and specialised laboratories
    • Analytical and preparative chemistry
    • Quality control laboratories
    • Biotechnology and molecular biology
    • Pharmaceutical research and production
    • Food and cosmetics industry
    • Fine chemical production
    • Petrochemistry
    • Electronics manufacturing and semiconductor industry
    • Photo labs and light-sensitive applications
Model ChemFAST Elite/Top 0.6 m ChemFAST Elite/Top 0.9 m ChemFAST Elite/Top 1.2 m ChemFAST Elite/Top 1.5 m ChemFAST Elite/Top 1.8 m
Standards DIN 14175-3, EN 61010-1 DIN 14175-3, EN 61010-1 DIN 14175-3, EN 61010-1 DIN 14175-3, EN 61010-1 DIN 14175-3, EN 61010-1
General dimensions (W×H×D, mm) 595 × 1120 × 760 885 × 1120 × 760 1185 × 1120 × 760 1500 × 1120 × 760 1800 × 1120 × 760
Usable dimensions (W×H×D, mm) 553 × 660 × 600 823 × 660 × 600 1123 × 660 × 600 1438 × 660 × 600 1738 × 660 × 600
Inflow (m/s) 0.60 0.60 0.60 0.60 0.60
Electr. Connection 220-240V, AC, 50Hz, 1ø 220-240V, AC, 50Hz, 1ø 220-240V, AC, 50Hz, 1ø 220-240V, AC, 50Hz, 1ø 220-240V, AC, 50Hz, 1ø
