Fume cupboard with variable air volume

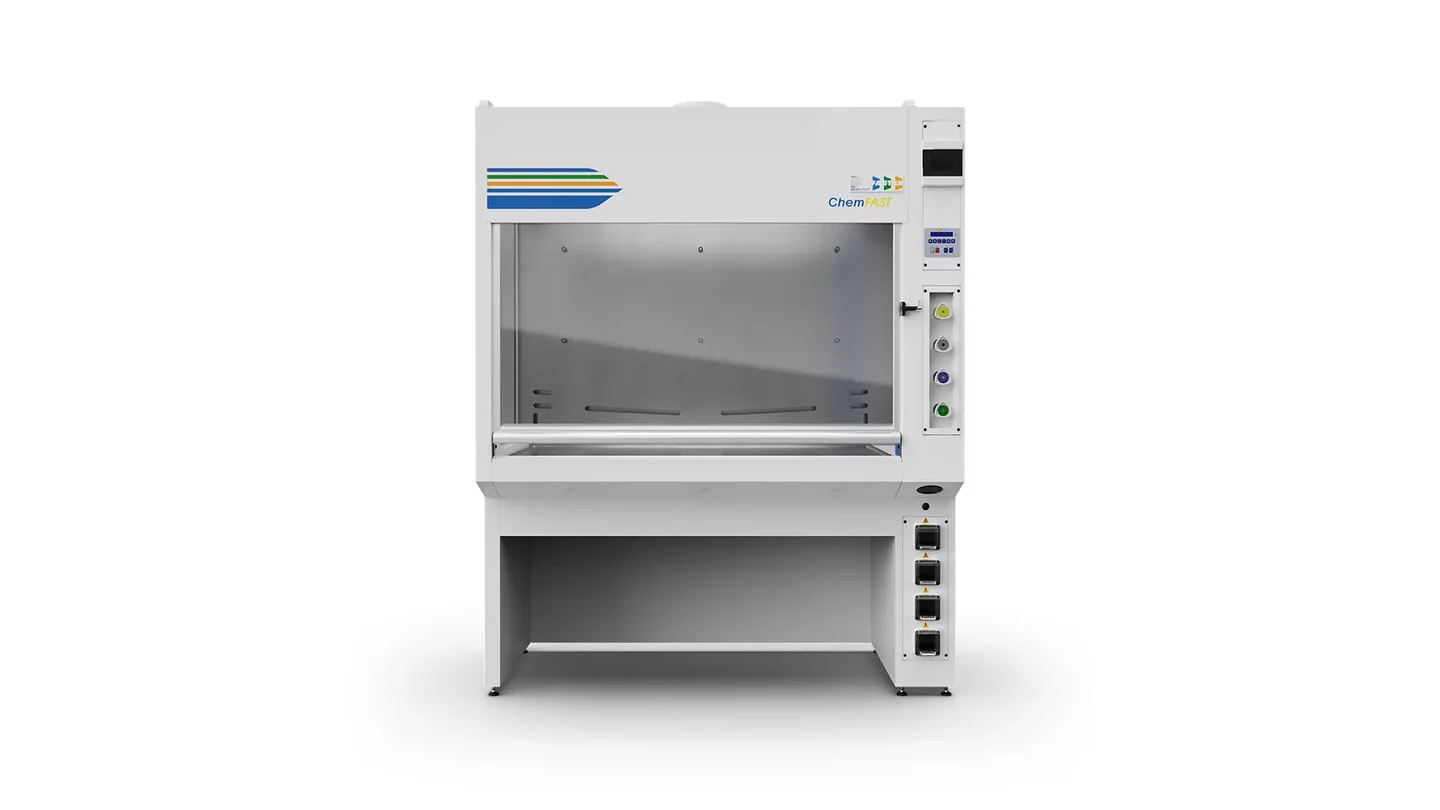

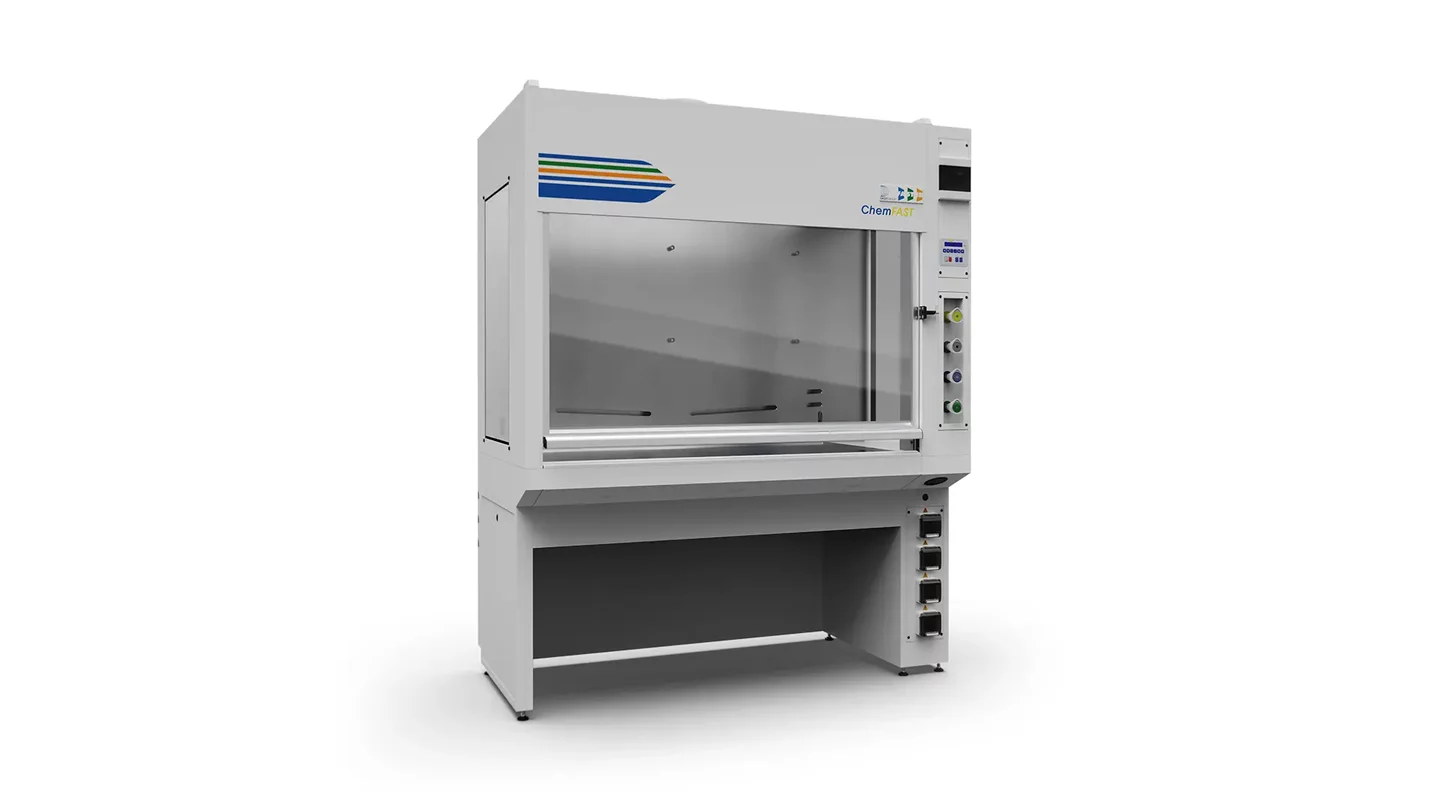

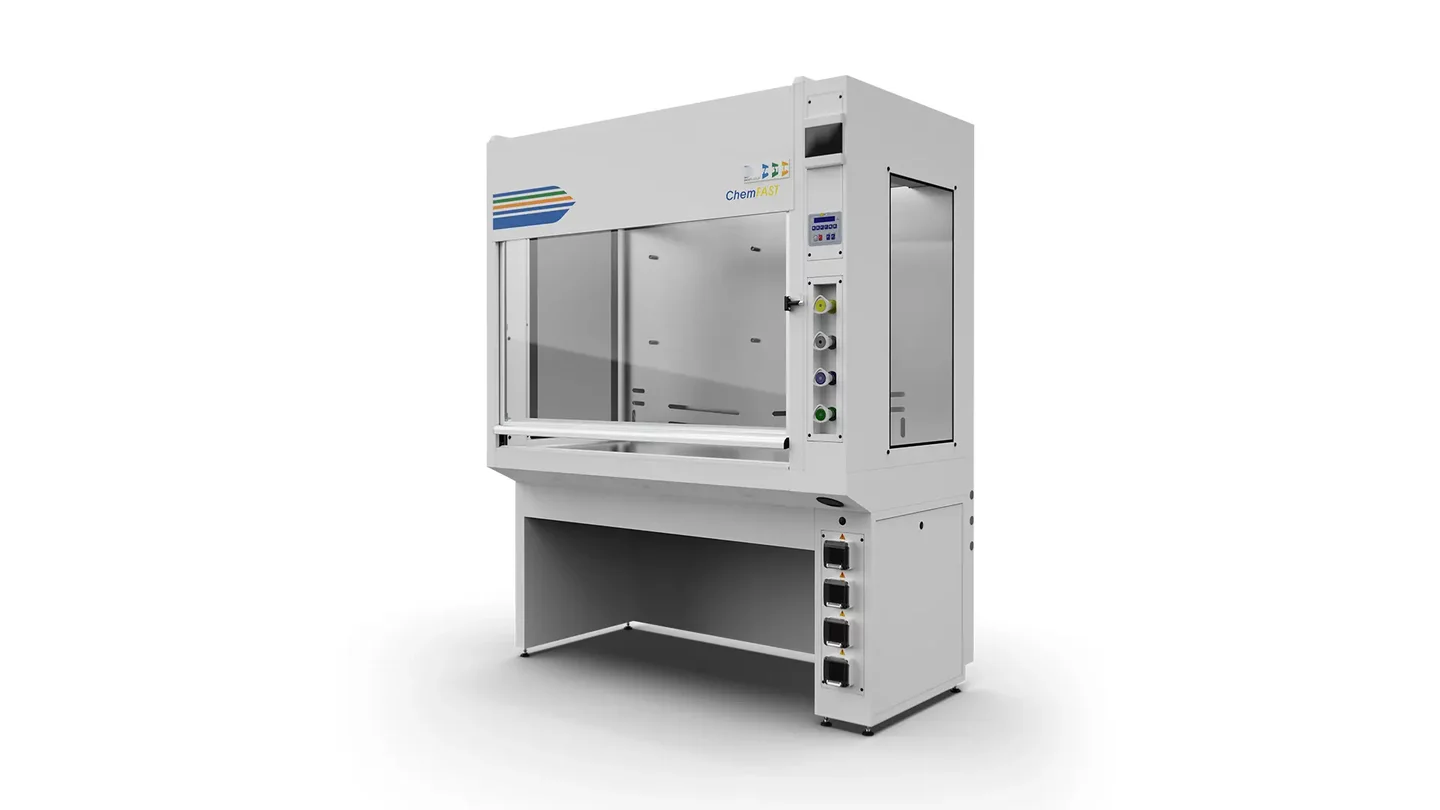

ChemFAST Sharp

The ChemFAST Sharp is a modern, high-performance chemical fume cupboard from FASTER, designed for connection to a centralised exhaust air system. Developed in accordance with the specifications of EN ISO 14175 Part 3-6, it offers maximum safety for the user - combined with energy-efficient airflow technology.

By using a variable air volume principle, the supply air speed is automatically adapted to the opening of the windscreen. This means that only as much air is conveyed as is actually required to ensure personal safety. This intelligent air volume regulation not only contributes to significant energy savings, but also sustainably reduces CO₂ emissions.



100 % exhaust air operation with intelligent control

The ChemFAST Sharp is fully designed for exhaust air operation and works with a microprocessor-controlled control system that continuously monitors the air speed and operating status. The integrated electronics guarantee precise control and support the implementation of energy-efficient laboratory strategies in accordance with the latest environmental and safety standards.

100% extract air mode
Automatic regulation of the supply air speed

Your product benefits at a glance

  • Maximum user protection thanks to certified airflow technology
  • Reduced energy consumption thanks to variable air volume control
  • Modularly customisable - tailored to your specific requirements
  • Future-proof & standard-compliant - fulfils EN ISO 14175 and international standards
  • Durable, easy to clean and low-maintenance
  • Technical features at a glance
    • Automatic air volume control depending on the sash opening
    • Multifunctional display with PLC control for simple operation and precise monitoring
    • Air flow display and operating hours counter for monitoring and maintenance planning
    • Side panes made of shatterproof safety glass
    • Chemical-resistant ceramic work surface - durable and easy to clean
    • LED workstation lighting for optimum visibility
    • Cable feed-throughs for safe device connection in the interior
    • Ergonomic design for comfortable and safe working
  • Filter options - suitable for all hazardous substance classes

    ChemFAST Sharp can be equipped with different filter systems - depending on the type of substances used:

    HEPA
    Particles and powders

    A/C
    Organic solvents

    ACR
    Radioactive substances

    FORM
    Formaldehyde

    SULF
    Acids / sulphides (RH85 %)

    UR
    Acids / sulphides (RH < 85 %)

    CYAN
    Hydrogen cyanide

    MER
    Mercury vapours

    AM
    Ammonia

  • Areas of application

    The ChemFAST Sharp is ideal for all laboratory areas in which hazardous substances are handled - regardless of industry or process:

    • Research and development laboratories
    • Analytical and instrumental chemistry
    • Pharmaceutical industry
    • biotechnology
    • Food technology
    • Quality control laboratories
    • Fine and petrochemistry
    • Electronics manufacturing
    • Cosmetics and personal care industry
    • Photochemical processes
    • Cleanrooms and special applications
  • Equipment options - individually configurable
    • Shelf for base cabinets or chemical cabinets
    • Worktop optionally available in:
      - polypropylene (resistant to bases and chemicals)
      - stainless steel 1.4404 (corrosion-resistant, pharma-compliant)
    • Sockets IP66 outside or inside
    • Gas connection for laboratory operation
    • Cold water connection with TAP-CONTROL-SINK
    • Filter saturation indicator for safe working with retention systems
    • Further special equipment available on request
Model ChemFAST Sharp 1.2 m ChemFAST Sharp 1.5 m ChemFAST Sharp 1.8 m ChemFAST Sharp 2.1 m ChemFAST Sharp 2.4 m
Standards DIN EN 14175 3-6, EN 61010-4 DIN EN 14175 3-6, EN 61010-5 DIN EN 14175 3-6, EN 61010-6 DIN EN 14175 3-6, EN 61010-7 DIN EN 14175 3-6, EN 61010-8
General dimensions (W×HxD, mm) 1200 x 2353 x 962 1500 x 2353 x 962 1800 x 2353 x 962 2100 x 2353 x 962 2400 x 2353 x 962
Usable dimensions (W×H×D, mm) 1185 x 1200 x 750 1485 x 1200 x 750 1785 x 1200 x 750 2085 x 1200 x 750 2385 x 1200 x 750
Inflow (m/s) 0.3 / 0.5 / 0.7 0.3 / 0.5 / 0.7 0.3 / 0.5 / 0.7 0.3 / 0.5 / 0.7 0.3 / 0.5 / 0.7
Exhaust air (m/s) (at 0.5 m/sec) 815 - 50 (max - min) (at 0.5 m/sec) 1085 - 65 (max - min) (at 0.5 m/sec) 1355 - 80 (max - min) (at 0.5 m/sec) 1625 - 97 (max - min) (at 0.5 m/sec) 1895 -115 (max - min)
