Laminar flow cabinets

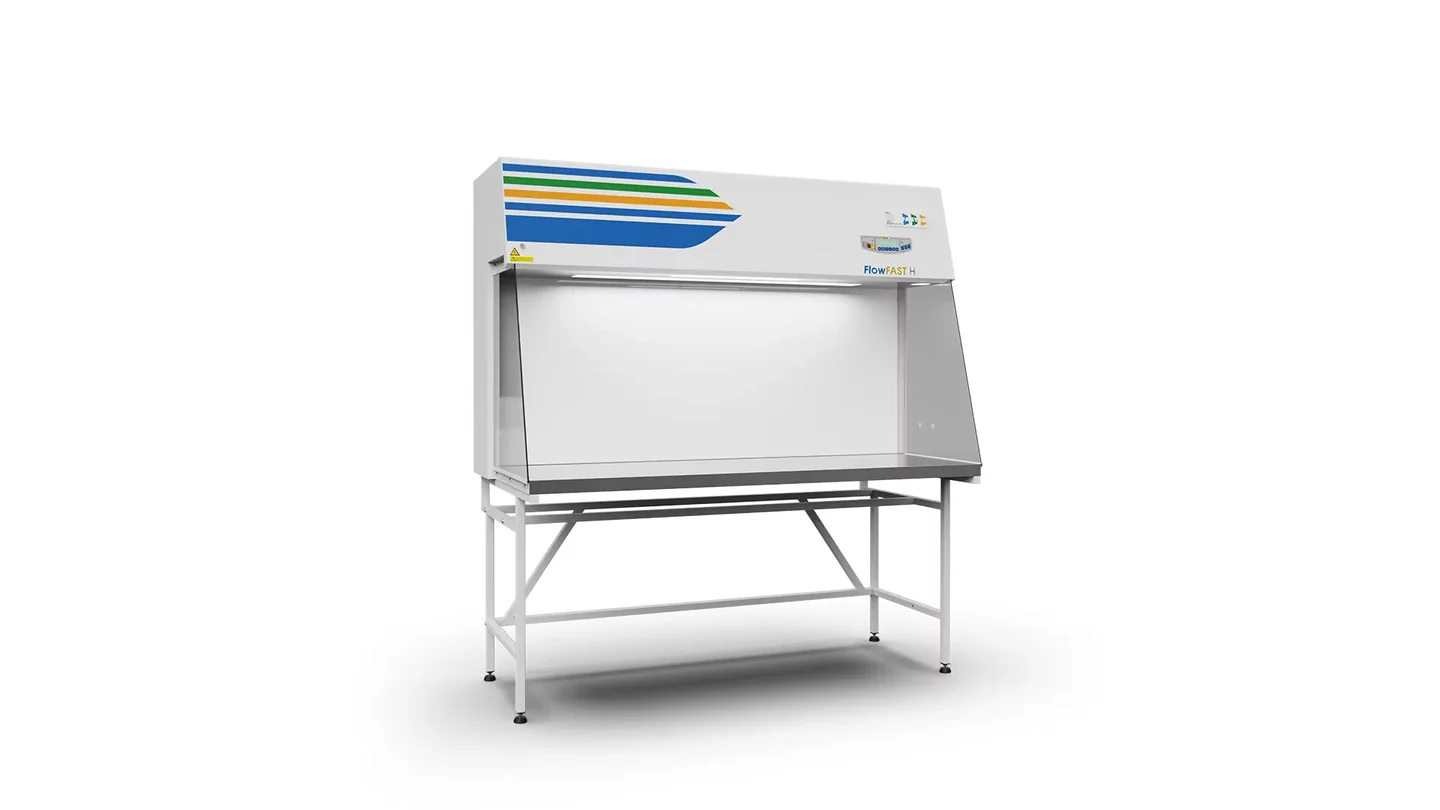

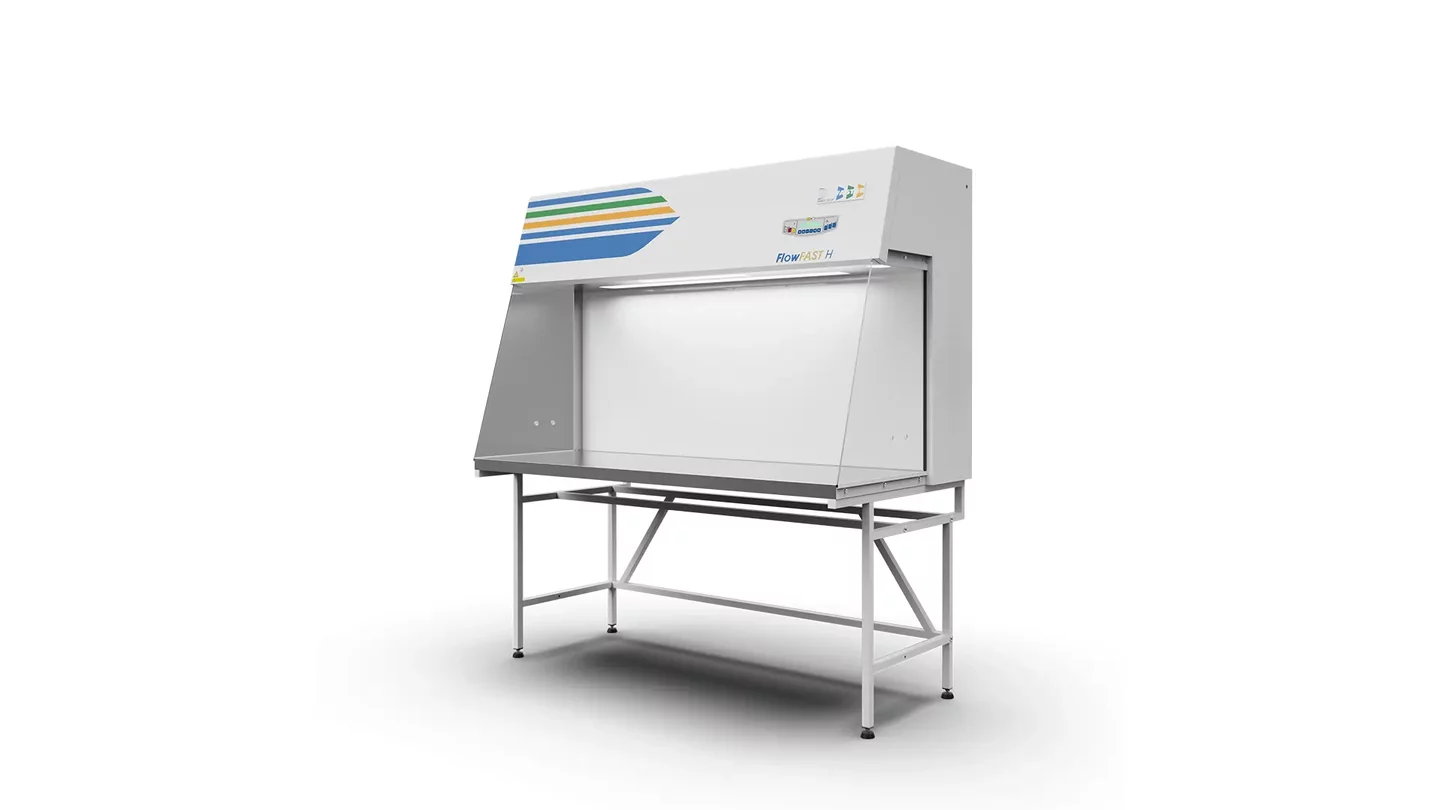

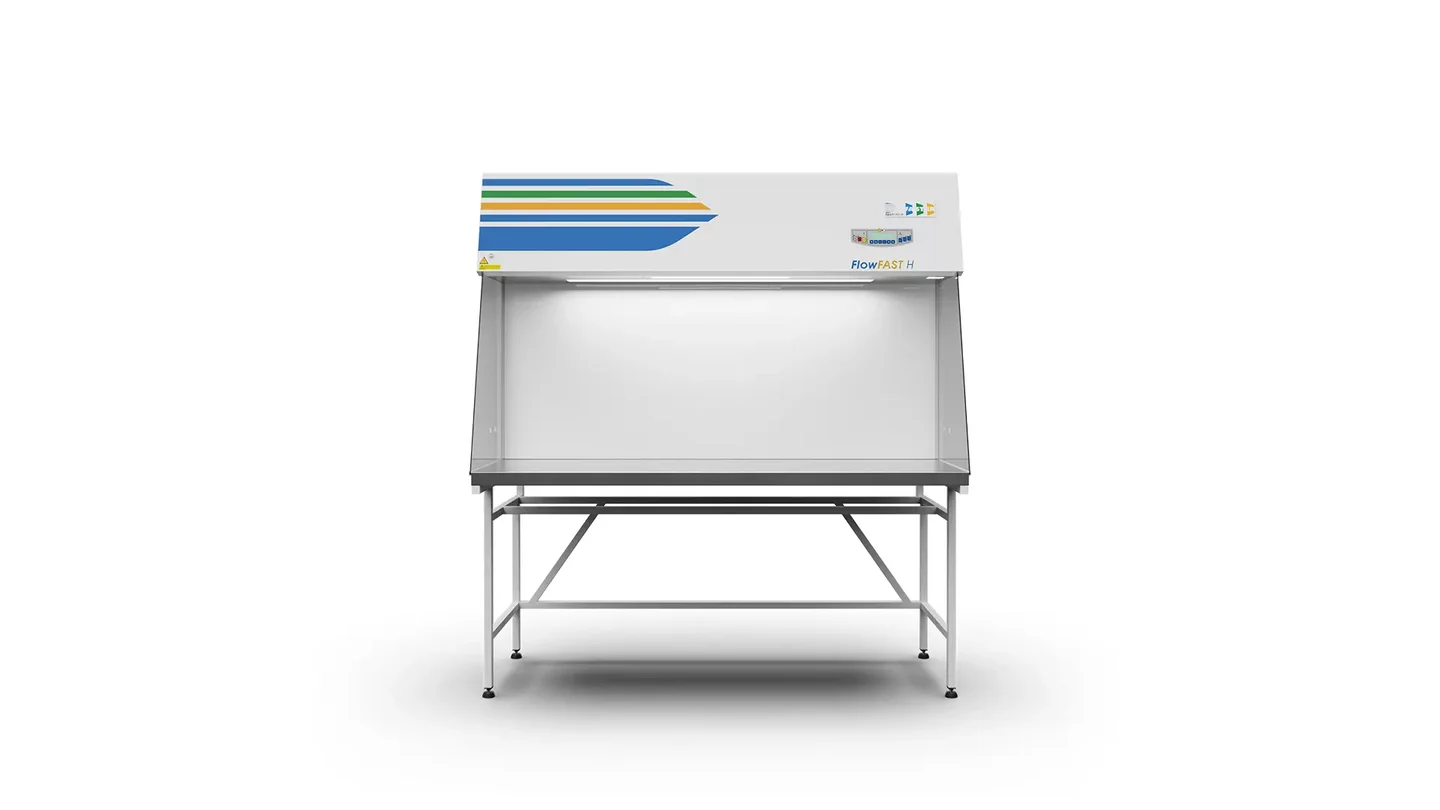

FlowFAST H
The FlowFAST H is a high-quality product safety cabinet with horizontal laminar airflow, specially developed for applications where the protection of samples, materials or sensitive products is paramount. The laminar, low-particle air is cleaned by a powerful HEPA H14 filter and flows evenly across the work area, creating a contamination-free environment for sensitive processes.
The open front area combined with generous internal height offers maximum ergonomic comfort, a clear view of the entire work area and sufficient freedom of movement, making the FlowFAST H particularly user-friendly - ideal for precise manual work under cleanroom conditions.
Your product benefits at a glance
- Horizontal laminar air flow in accordance with ISO 14644-1, class ISO 3
- Particle-free working area thanks to HEPA H14 filter with 99.995 % filtration efficiency
- Low energy consumption < 300 W - for cost-efficient continuous operation
- Quiet operation < 60 dB(A) - ideal for quiet laboratory environments
- Multifunctional display with PLC control - intuitive operation and status display
- Automatic air flow controller - constant air flow velocity
- Front cover made of PVC roller blind - dust protection when not in use
- Side panes made of shatterproof safety glass - high transparency and protection
- AISI 304L stainless steel work surface - chemical-resistant, smooth and easy to clean
- Integrated socket (EU/international) - for easy device connection
Optional features for maximum functionality
Mobile base frame with swivel castors
- Base frame for a seated workstation height of 880 mm – The base frame can also be individually adjusted to your desired working height on request. A bespoke design is available at an additional cost.
- 360° swivel polyurethane castors – quiet and gentle on the floor
- Front castors with locking mechanism – for stability
Sockets & media connections
- Compatible with international standards: DIN 12898, DIN 12919, DIN 3537
- Electrical sockets for EU and global requirements
- Connections for gas, air, vacuum and much more
UV decontamination system (optional)
- UV-C lamp with a wavelength of 253.7 nm – highly effective DNA/RNA inactivation
- Safety shut-off when the front is opened
- Programmable UV timer via the control display
- Please note: UV radiation is no substitute for manual cleaning. Lamps should be replaced regularly (every 12 months).
Expandable accessories for optimum ergonomics
IV hanging rail with hooks
- Made of stainless steel, with 6 hooks
- For pharmaceutical applications, for hanging infusion bags
- Optimises workflow and keeps things tidy
Ergonomic footrest
- Tilt-adjustable and height-adjustable
- With anti-slip coating
- Chemical-resistant – ideal for everyday laboratory use
Ergonomic laboratory chair
- Specially designed for Class 100 cleanrooms
- Upholstery made from alcohol-resistant PVC
- Seat height adjustment from 395–490 mm – for individual customisation
Typical applications for the FlowFAST H
- Pharmaceutical manufacturing and packaging
- Cell culture and microbiology laboratories
- Food technology
- Optoelectronics, semiconductor and nanotechnology
- Cosmetics industry and development
- Cleanrooms and GMP-regulated environments
| Model Type | FlowFAST H 0.9 m | FlowFAST H 1.2 m | FlowFAST H 1.5 m | FlowFAST H 1.8 m |
|---|---|---|---|---|
| Standards | EN61010-1, ISO 14644-1 | EN61010-1, ISO 14644-1 | EN61010-1, ISO 14644-1 | EN61010-1, ISO 14644-1 |
| General dimensions (W×H×D, mm) | 945 × 1195 × 925 | 1250 × 1195 × 925 | 1555 × 1195 × 925 | 1860 × 1195 × 925 |
| Usable dimensions (W×H×D, mm) | 885 × 734 × 600 | 1190 × 734 × 600 | 1495 × 734 × 600 | 1800 × 734 × 600 |
| Outflow (m/s) | 0.40 | 0.40 | 0.40 | 0.40 |
| Electr. Connection | 1Ph+E - 230 V 50 hz | 1Ph+E - 230 V 50 hz | 1Ph+E - 230 V 50 hz | 1Ph+E - 230 V 50 hz |
